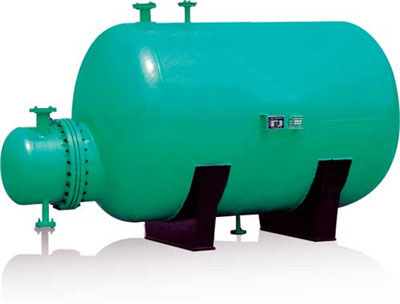

HRV RV生活用容积、半容积式换热器

产品适用范围

适用于生活小区、医院、宾馆、学校等的生活热水系统。

Application range of product

The product is suitable for living hot water systems of living area, hospital, hotel and school.

产品特点

*换热充分。汽—水换热时能将凝结水的出水温度降至约50℃，节能。水—水换热时，在热媒为低温水(70~80℃)及额定产水量条件下，单级换热可交换出所需温度的热水。

*在导流装置的作用下，罐体底部冷水滞水区减少为“容积式水加热器”的一半。

*罐体占地面积小，抽出管束所需空间小。

*保持了“容积式换热器”被加热水侧水头损失小(≤0.003MPa)的优点，有利于系统冷热水压力之平衡。

Product features

* Full heat exchange. When steam-water heat exchange, discharge temperature of condensation can be decreased to about 50℃, and saves energy. When water-water heat exchange, single level heat exchange can exchange out hot water with required temperature under the conditions that thermal medium is low temperature water (70-80℃) and output water quantity is rated.

* Stagnant area of cold water at the bottom of tank is decreased to half of  "volumetric water heater".

* Tank has small floor area, and space for drawing out pipes is small.

* Keeping advantage of small side water head loss at heating water of  "volumetric heat exchanger", and being favorable for making cold and hot water pressures of the system balanced.

主要技术参数

供应热水：1T/H~60T/H

一次热源：蒸汽或高温水

承受压力：0.1~2.5MPa(常用)

设备容积：1.0~20m3

Main technical parameters

Hot water supply: 1T/H~60T/H

Primary heat source: Steam of high temperature water

Bearing pressure: 0.1~2.5MPa(normal)

Equipment volume: 1.0~20m3
